Source: CRRC ZELC EUROPE

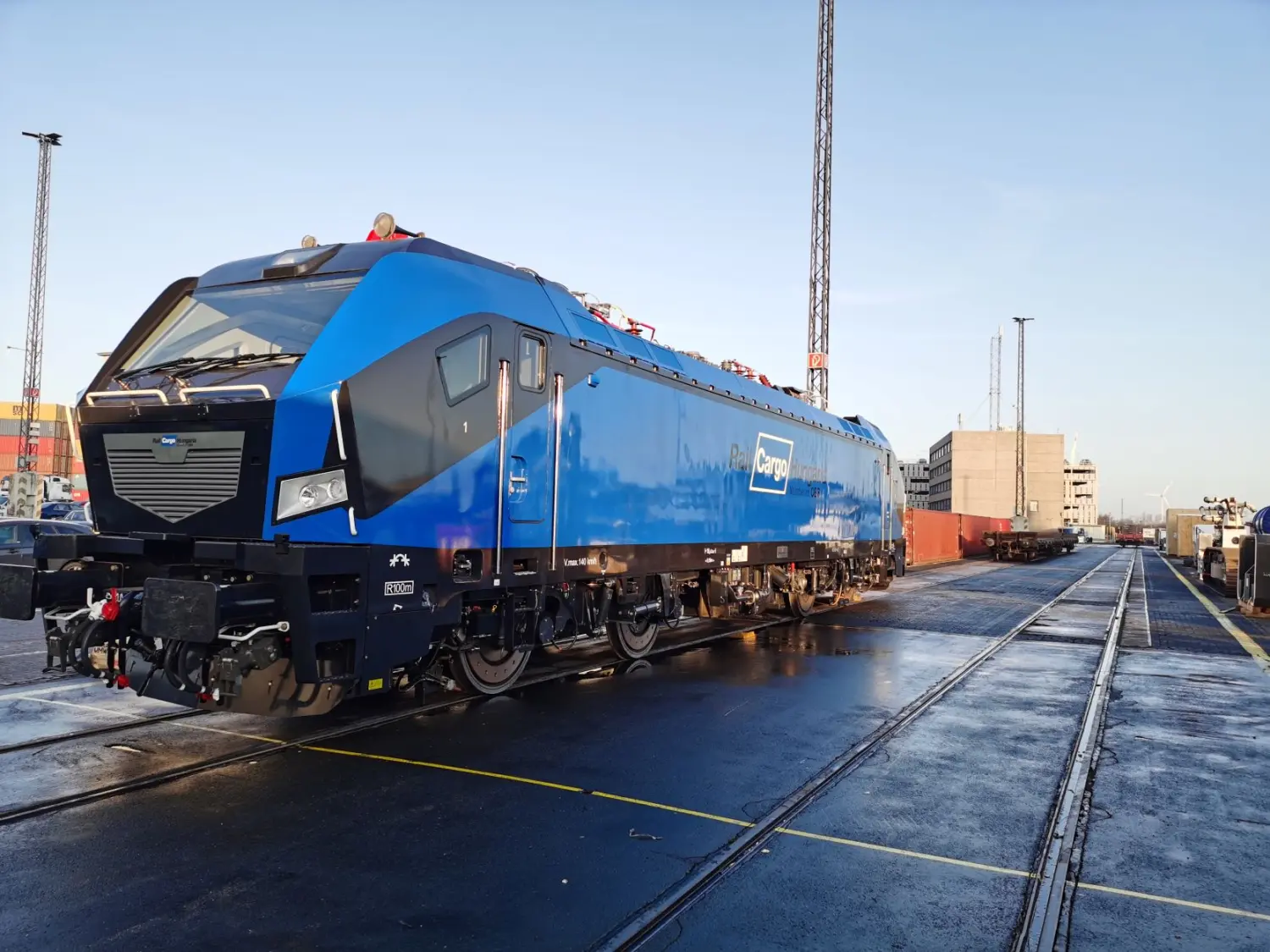

Class 181 "Bison"
UIC / EVN numbering:
91 80 0181Vehicle type:
Registration country:
Railway companies:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
Bo'Bo'
Electric systems:
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
25 kV AC / 50 Hz
Length over buffers (mm):
19'470
Width (mm):
2'950
Minimum radius of curvature (m):
100
Service weight (t):
90
Axle load (t):
22,5
Power output (x'xxx kW / x'xxx hp):
5'600 kW
Tractive effort (kN / lbf | starting / continuous):
300 kN*
*starting
250 kN*
*continuous at 80 km/h
*starting
250 kN*
*continuous at 80 km/h
Last Mile power output (kW / hp):
350 kW*
*batteries
*batteries
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'250*
*new
*new
Maximum speed (km/h):
140
