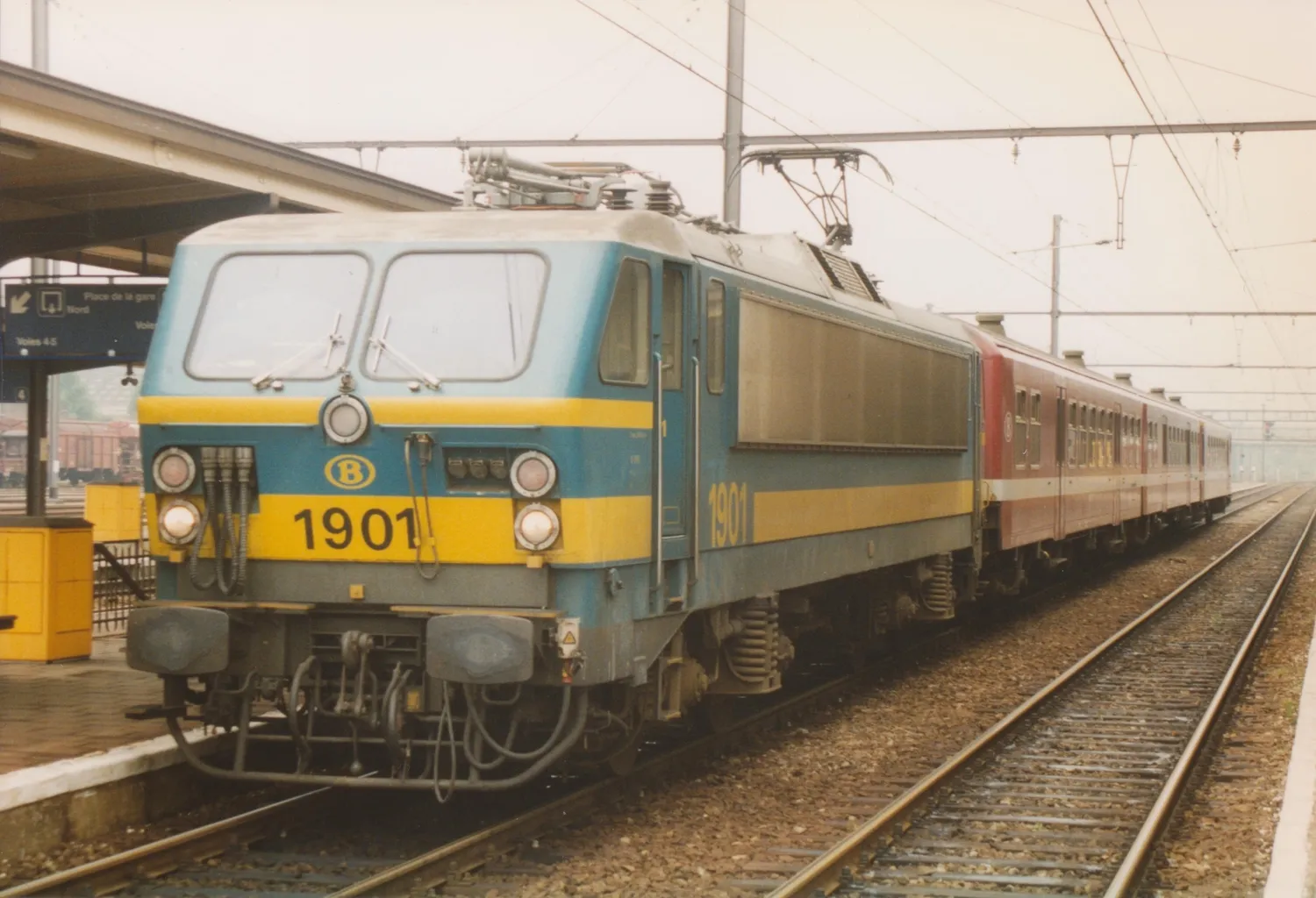

Source: Gerald Buis - flickr.com
Class 19
Vehicle type:
Registration country:
In service:
from 1993
Era:
V
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
Bo'Bo'
Electric systems:
25 kV AC / 50 Hz
3 kV DC
3 kV DC
Current collectors:
Pantograph - Asymmetrical
Length over buffers (mm):
18'650 mm
Height (mm | over lowered pantograph):
3'600 mm
Tare weight (t):
88 t
Power output (x'xxx kW / x'xxx hp):
4'500 kW
6'000 hp
6'000 hp
Tractive effort (kN / lbf | starting / continuous):
280 kN
63'000 lbf
63'000 lbf
Maximum speed (km/h):
160 km/h
1993
1993--01
