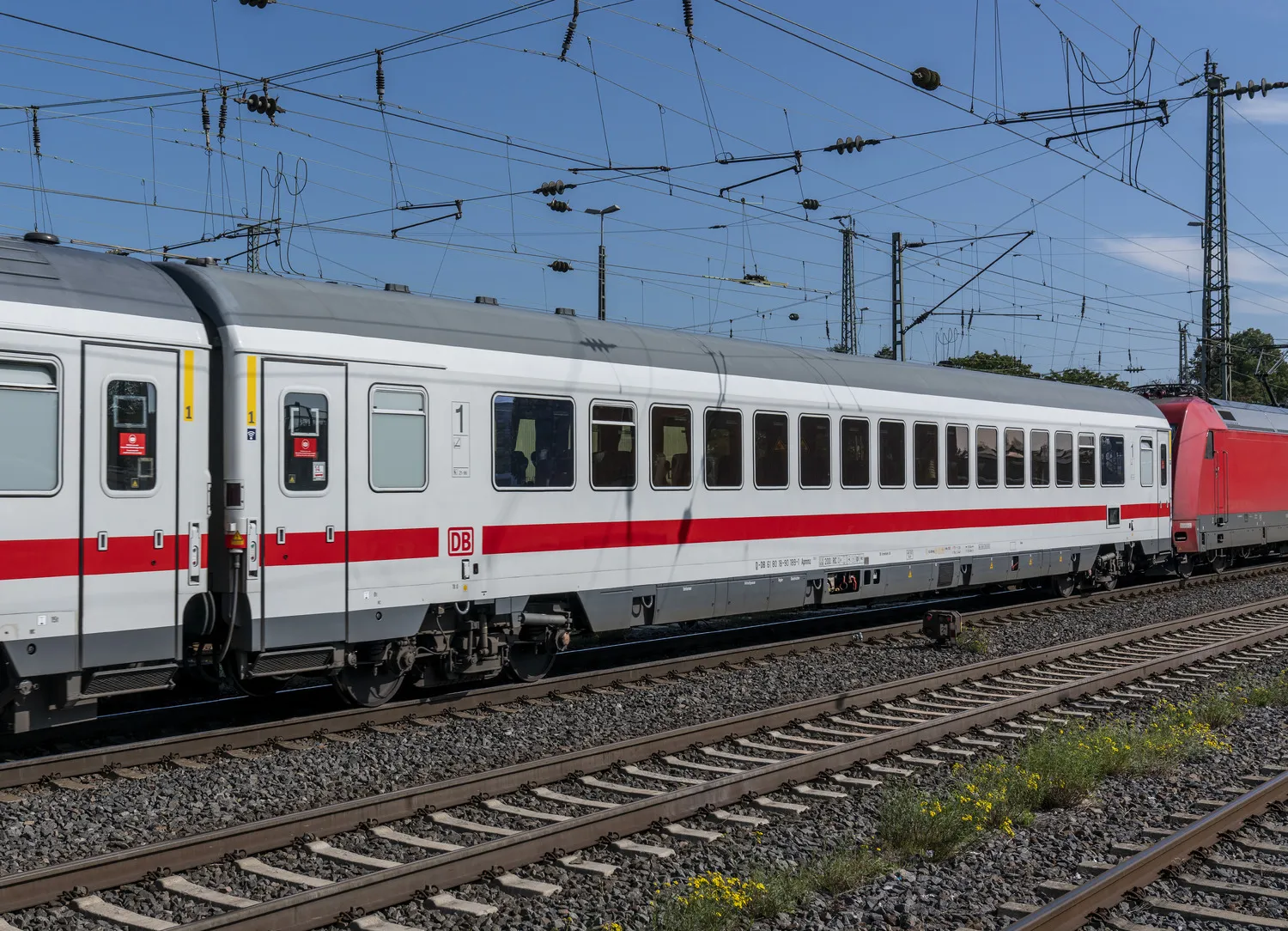

Source: Albert Koch - flickr.com
Apmmz126.1
UIC / EVN numbering:
61 80 18-9073 80 18-90Vehicle type:
Registration country:
Railway companies:
Era:
VI
Gauge:
Standard gauge (1'435 mm)
Length over buffers (mm):
26'400 mm
Width (mm):
2'825 mm
Height (mm | over lowered pantograph):
4'050 mm
Wheelbase (distance between bogies centers) (mm):
19'000 mm
Tare weight (t):
47 t*
*standard
48 t*
*equipped with bogie type Minden-Deutz 523
*standard
48 t*
*equipped with bogie type Minden-Deutz 523
Bogies:
Minden-Deutz 367*
*standard
Minden-Deutz 523
*standard
Minden-Deutz 523
Maximum speed (km/h):
200 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
KE-GPR-Mg (D) [ep] [NBÜ]
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
54x 1st class seats
Do you have additional informations regarding this vehicle?
Help us writing the history of Apmmz126.1! Your knowledge is precious for us and the entire community, do not hesitate to share your facts, photos or videos:
Discussion forum
Apmmz126.1 miniature models:
DB - Intercity (IC) passenger coaches set
Manufacturer: Roco
Article number: 6200019
Released: April 2024
