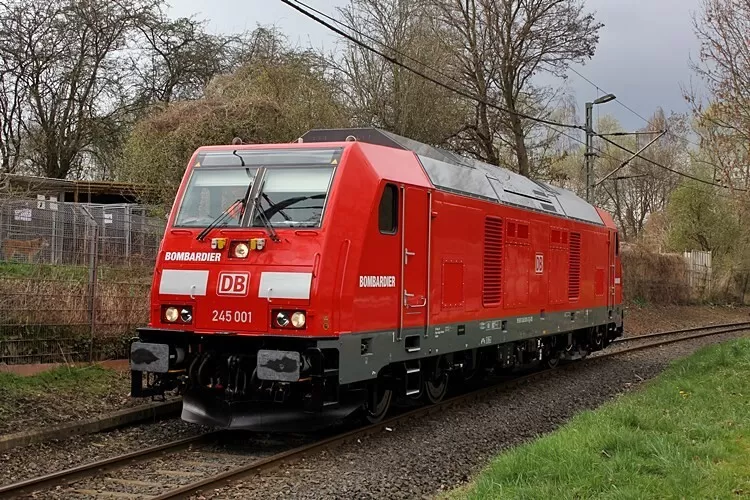

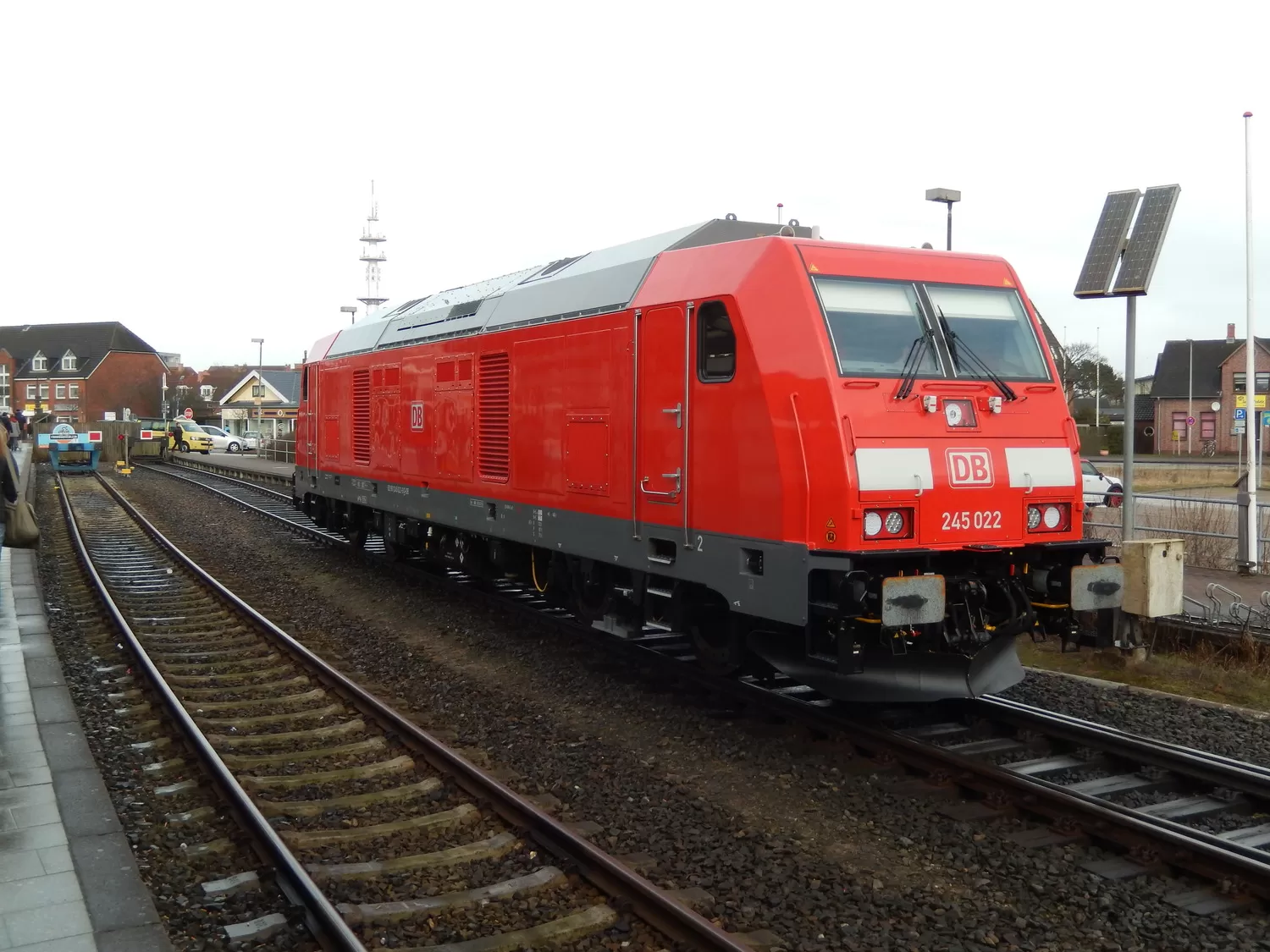

Class 245
Also known as:
Br 245
UIC / EVN numbering:
92 80 1245Vehicle type:
Registration country:
Railway companies:
Era:
VI
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
Bo'Bo'
Length over buffers (mm):
18'900 mm
Width (mm):
2'977 mm
Height (mm | over lowered pantograph):
4'264 mm
Wheelbase (distance between bogies centers) (mm):
10'440 mm
Distance between axles within bogie (mm):
2'600 mm
Tare weight (t):
82 t
Axle load (t):
20,5 t
Diesel engine:
4x CAT C18 diesel engines
Power output (x'xxx kW / x'xxx hp):
2'256 kW
Tractive effort (kN / lbf | starting / continuous):
300 kN*
*starting
*starting
Fuel tank volume (l):
4000 l
Wheel diameter (x'xxx,xx | mm | new / worn):
1'250 mm*
*new
1'170 mm*
*worn
*new
1'170 mm*
*worn
Maximum speed (km/h):
160 km/h
2011
2011--01
