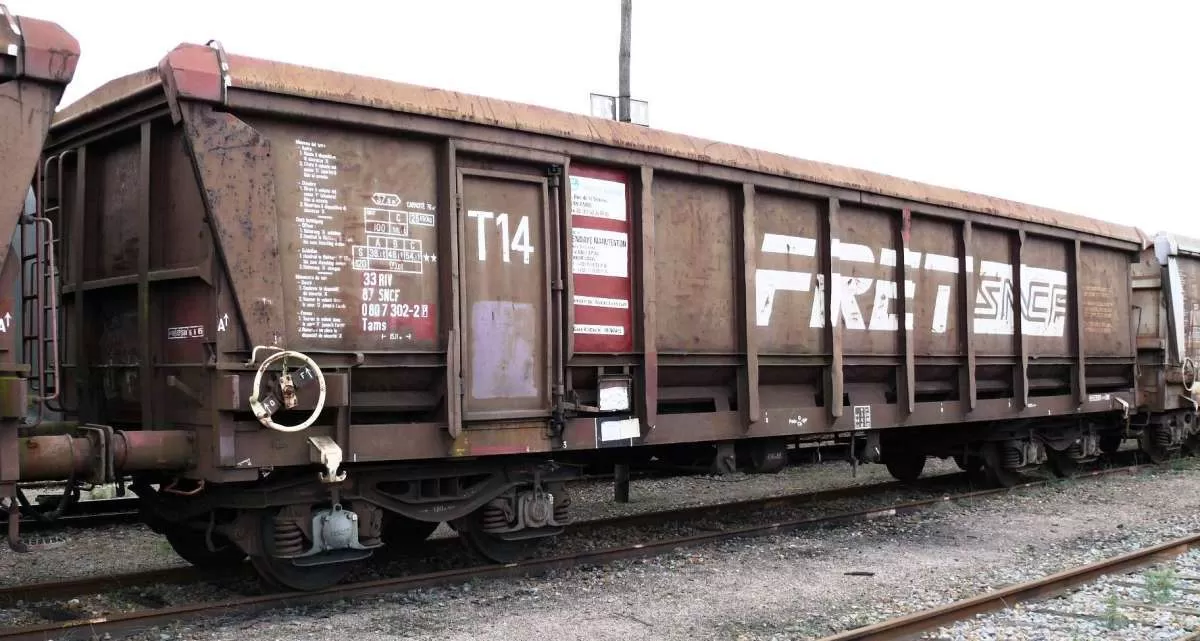

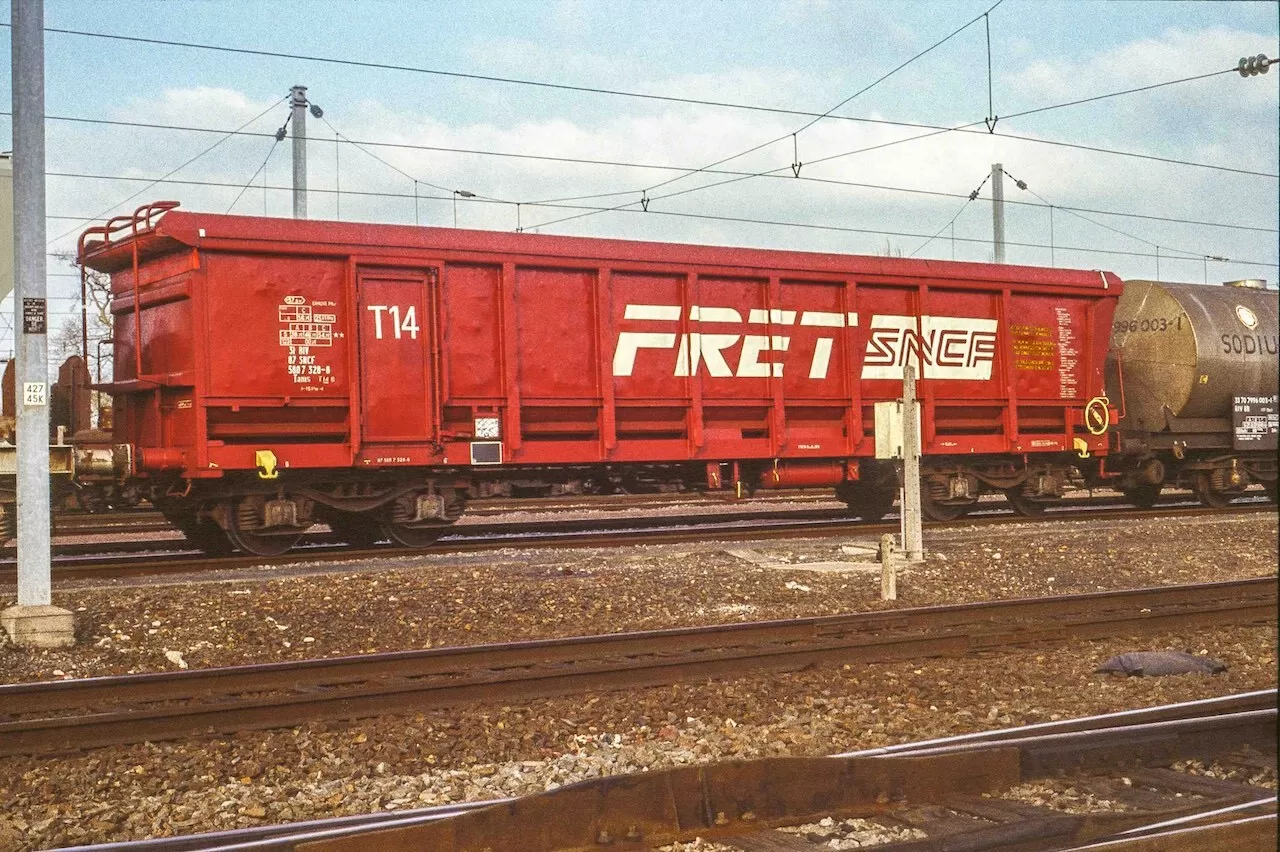

Tams T14
UIC / EVN numbering:
31 87 580 731 87 080 733 87 080 7Vehicle type:
Registration country:
Railway companies:
In service:
from 1991
Era:
V
Gauge:
Standard gauge (1'435 mm)
Length over buffers (mm):
15'110 mm
Width (mm):
3'148 mm
Height (mm | over lowered pantograph):
3'615 mm
Wheelbase (distance between bogies centers) (mm):
10'070 mm
Minimum radius of curvature (m):
35 m
Tare weight (t):
25,85 t
Maximum weight (t):
80 t
Maximum load weight (t):
54,1 t (54,7 t)
Maximum speed (km/h):
100 km/h*
*loaded
120 km/h*
*empty
*loaded
120 km/h*
*empty
Floor surface (m²):
37,80 m²
Maximum load volume (m³):
76,50 m³
1991
1991--01
