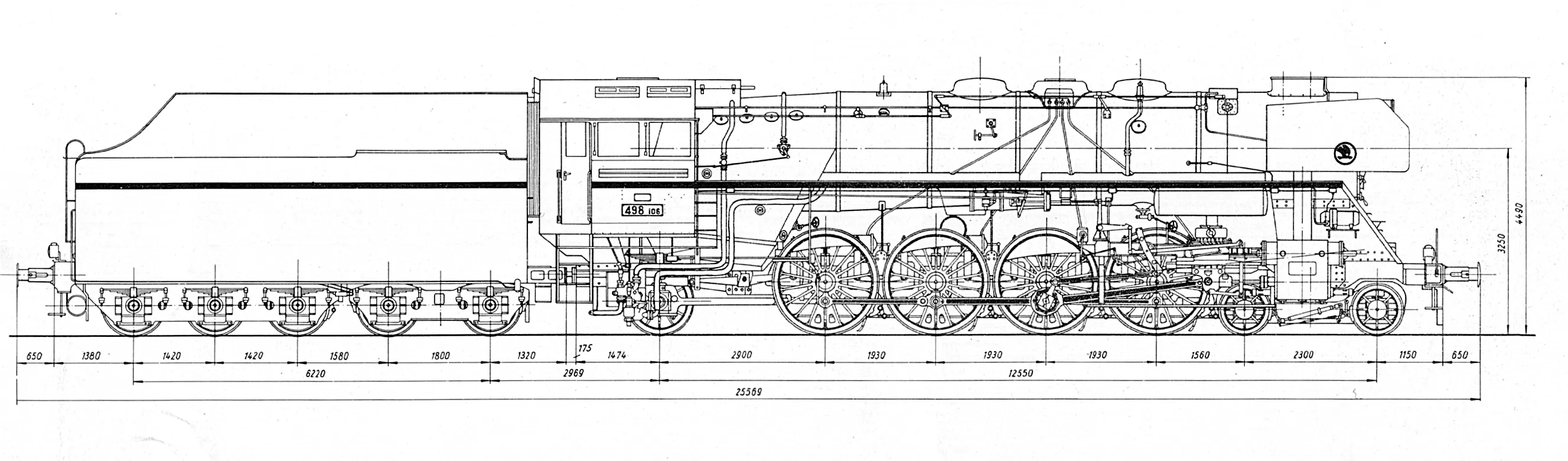

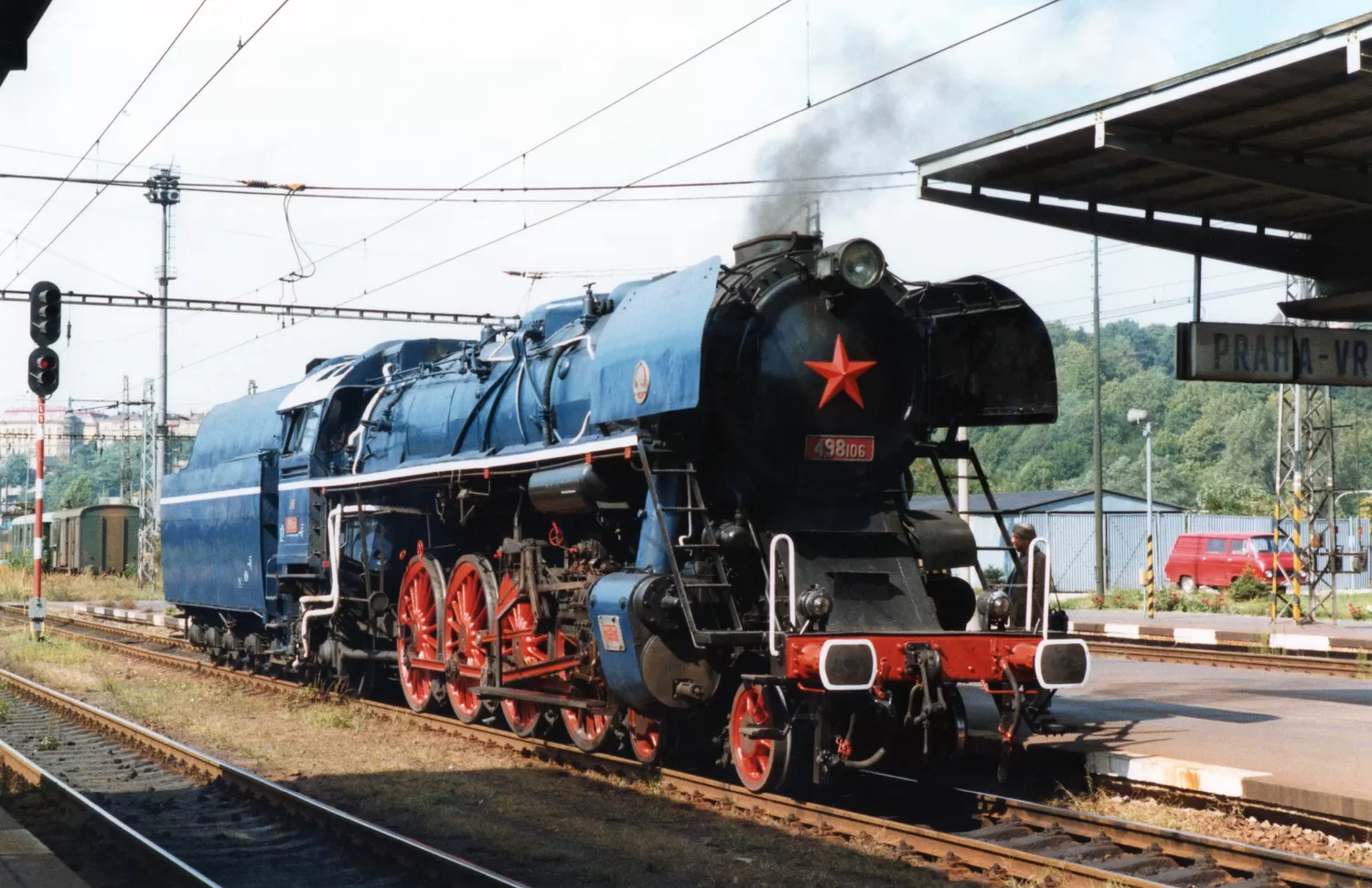

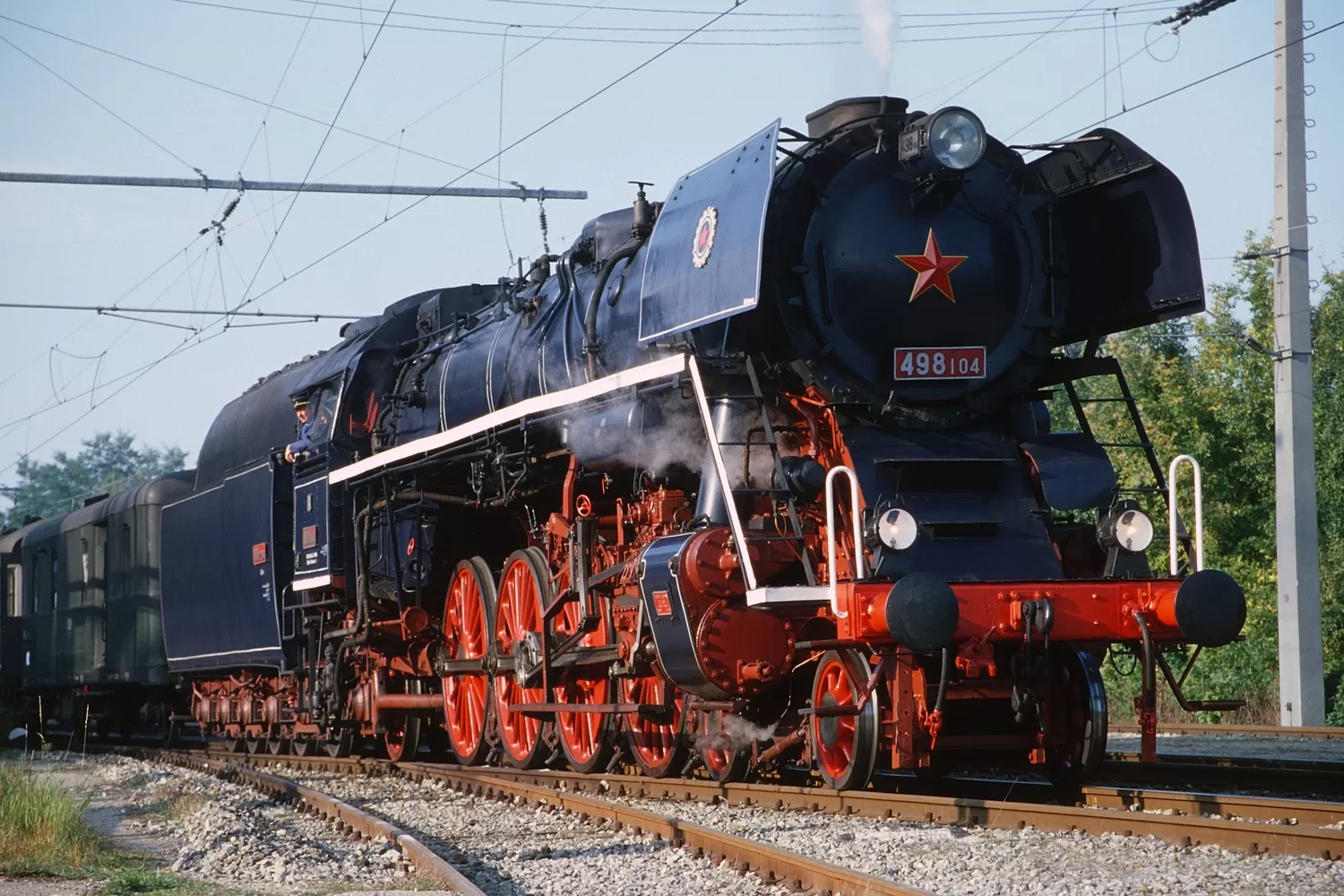

Class 498.1 "Albatros"
Vehicle type:
Registration country:
Railway companies:
In service:
from 1952
Era:
III
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
1′D2′
Length over buffers (mm):
25'500 mm
Wheelbase (mm | rigid / total):
5'790 mm*
*rigid
12'550 mm*
*total
21'544 mm*
*with tender
*rigid
12'550 mm*
*total
21'544 mm*
*with tender
Tare weight (t):
103,2 t
Service weight (t):
116,6 t
203,0 t*
*with tender
203,0 t*
*with tender
Cylinders:
3x
Cylinders diameter (mm):
500 mm
Pistons stroke (mm):
680 mm
Number of heating pipes:
101
Heating pipe length (mm):
6'000 mm
Surface of superheater (m²):
73,25 m²
Steam pressure (Atm. / bar):
16 bar
Water tank capacity (kg / l / m³):
35 m³
Coal capacity (kg / m³):
20 m³
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'830 mm
Leading wheel diameter (x'xxx,xx | mm | new / worn):
880 mm
Trailing wheel diameter (x'xxx,xx | mm | new / worn):
1'150 mm
Maximum speed (km/h):
120 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
Handbrake
Compressed air brake
Westinghouse/Bozic G/P
Compressed air brake
Westinghouse/Bozic G/P
