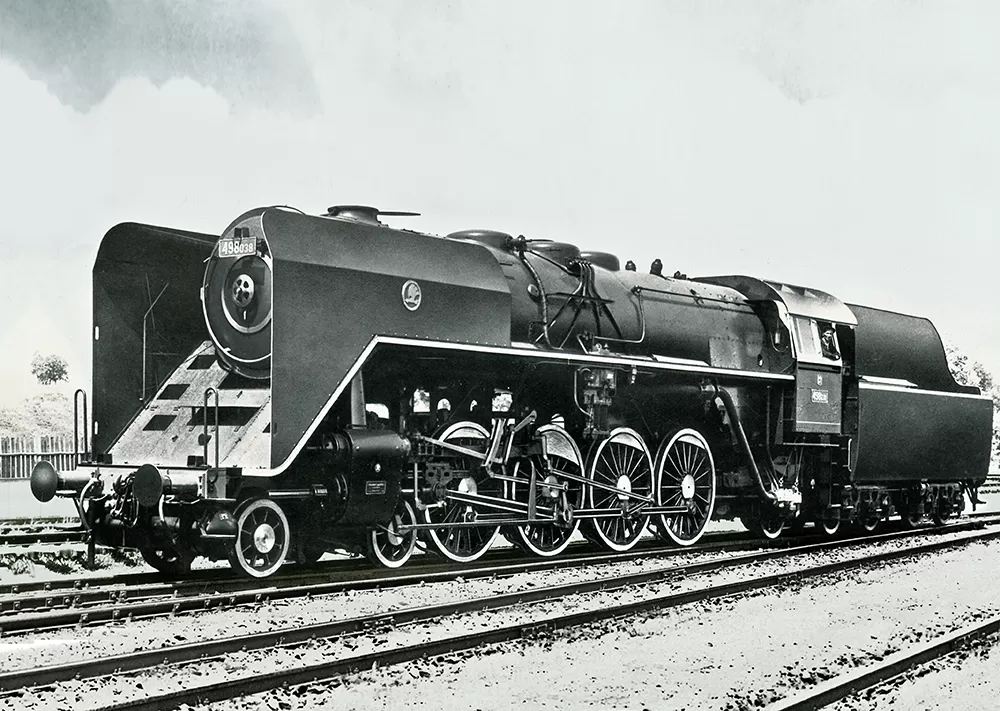

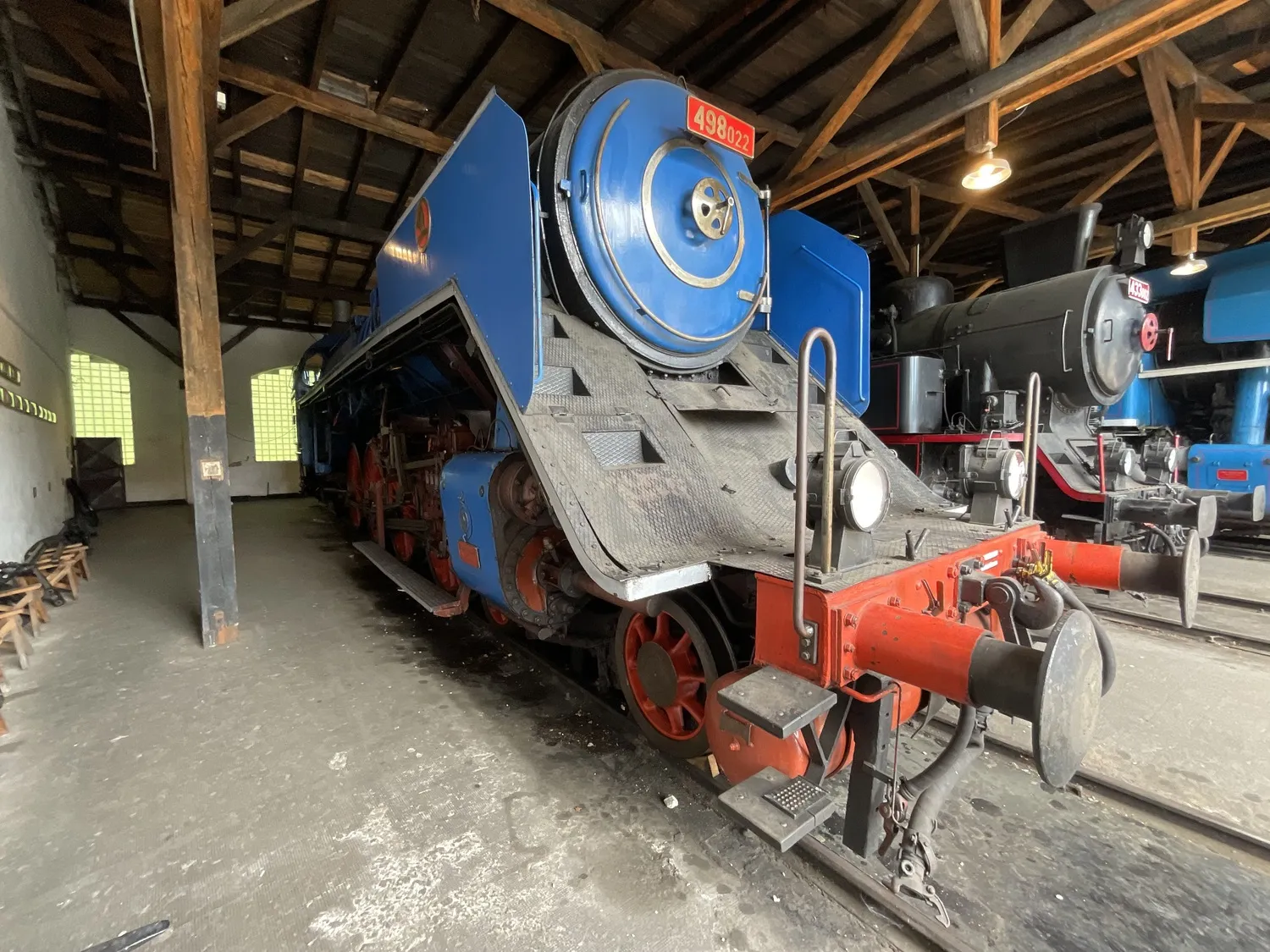

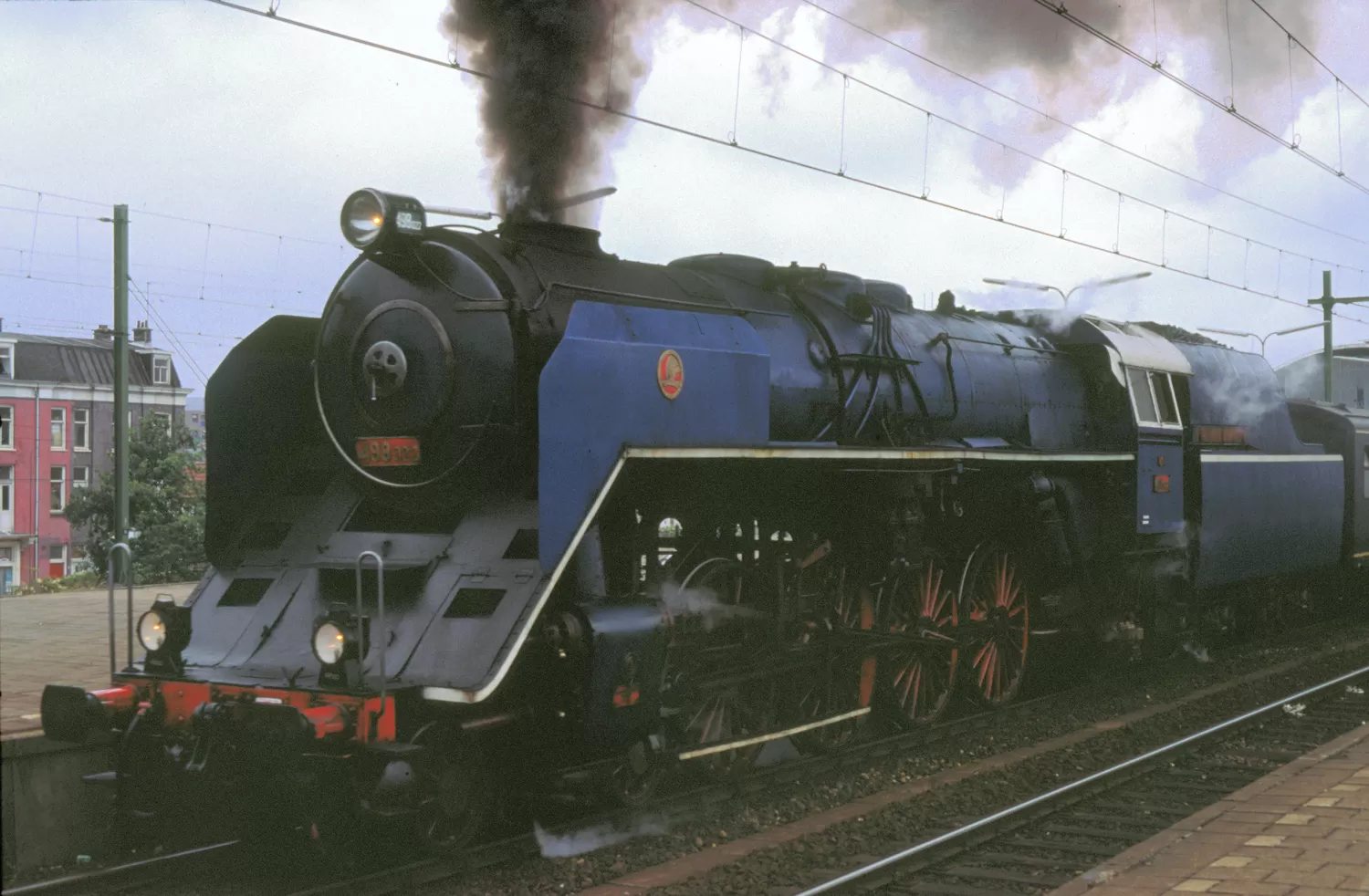

Class 498.0 "Albatros"
Vehicle type:
Registration country:
Railway companies:
In service:
from 1946
Era:
III
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
1′D2′
Length over buffers (mm):
24'950 mm
Wheelbase (mm | rigid / total):
5'790 mm*
*rigid
12'550 mm*
*total
21'120 mm*
*with tender
*rigid
12'550 mm*
*total
21'120 mm*
*with tender
Tare weight (t):
96,3 t
Service weight (t):
106,1 t
175,0 t*
*with tender
175,0 t*
*with tender
Cylinders:
3x
Cylinders diameter (mm):
500 mm
Pistons stroke (mm):
680 mm
Number of heating pipes:
134
Heating pipe length (mm):
6'000 mm
Surface of superheater (m²):
73,8 m²
Steam pressure (Atm. / bar):
16 bar
Coal capacity (kg / m³):
14,9 m³
Water tank capacity (kg / l / m³):
26 m³
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'830 mm
Leading wheel diameter (x'xxx,xx | mm | new / worn):
880 mm
Trailing wheel diameter (x'xxx,xx | mm | new / worn):
1'308 mm
Maximum speed (km/h):
120 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
Handbrake
Compressed air brake
Westinghouse/Bozic G/P
Compressed air brake
Westinghouse/Bozic G/P
1946
1946--01
