BCAM/MOT
Also known as:
Sentinel-Cammell 4-axles
Vehicle type:
Registration country:
Railway companies:
In service:
from 1932

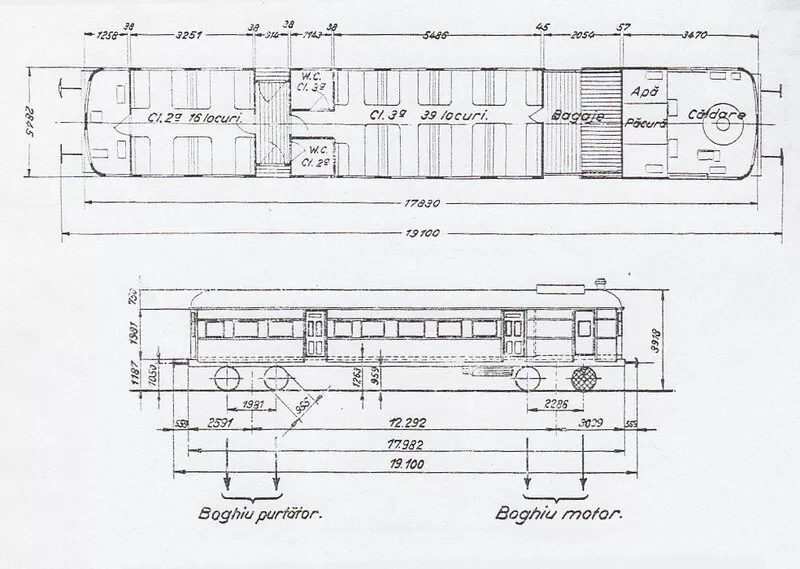

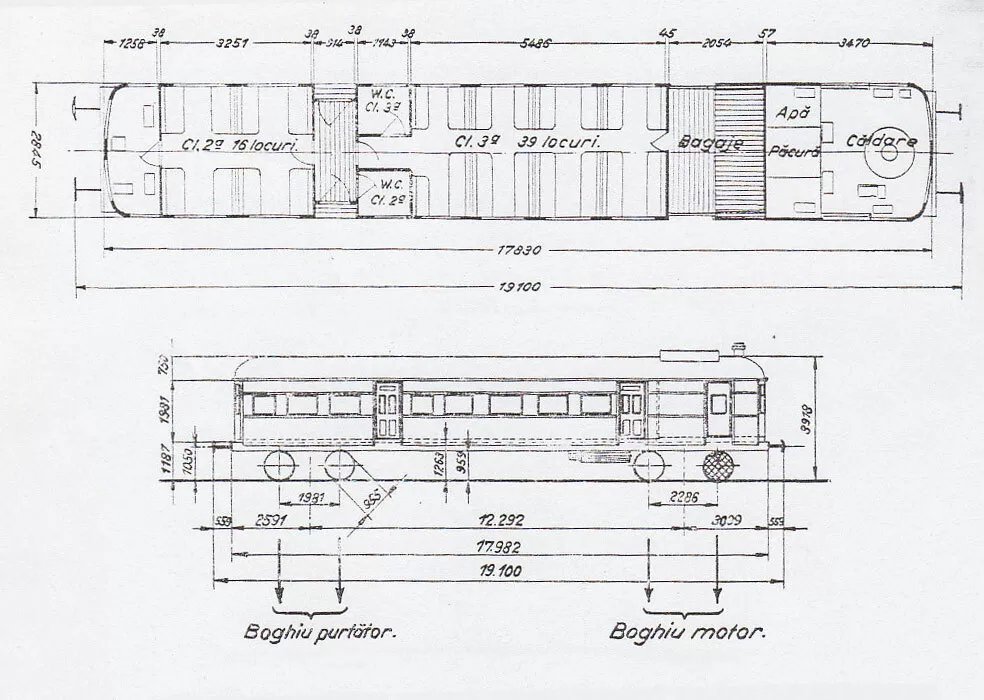

Length over buffers (mm):
19'100 mm
Wheelbase (distance between bogies centers) (mm):
12'292 mm
Tare weight (t):
31,955 t
Service weight (t):
35,460 t
Number of driven axles:
1x
Engine:
6-cylinder steam engine
Power output (x'xxx kW / x'xxx hp):
100 hp
Bogie wheelbase (mm):
2'286 mm*
*driven bogie
1'981 mm*
*carrier bogie
*driven bogie
1'981 mm*
*carrier bogie
Wheel diameter (x'xxx,xx | mm | new / worn):
955 mm
Maximum speed (km/h):
90 km/h*
*70 km/h maximum permissible speed on the Romanian Railways network
*70 km/h maximum permissible speed on the Romanian Railways network
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
55x seats (16x 2nd class seats and 39x 3rd class seats)
1932
1932--01
