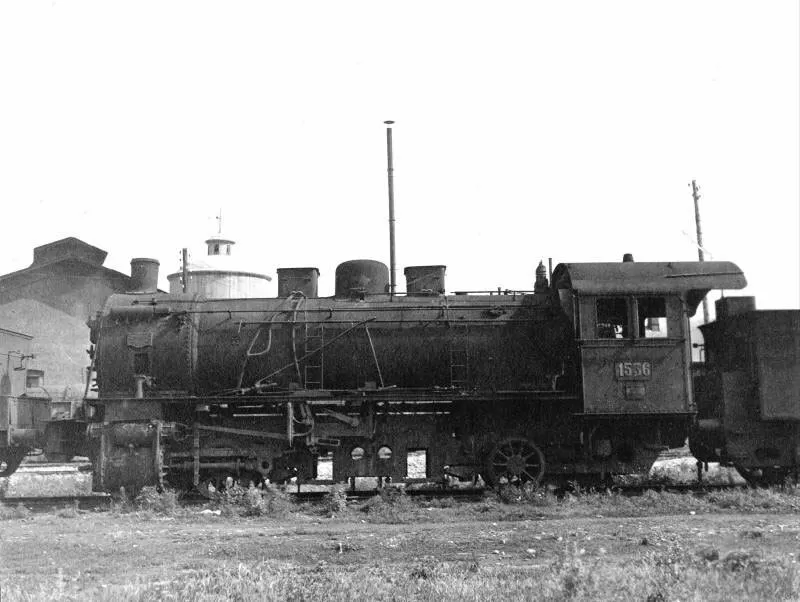

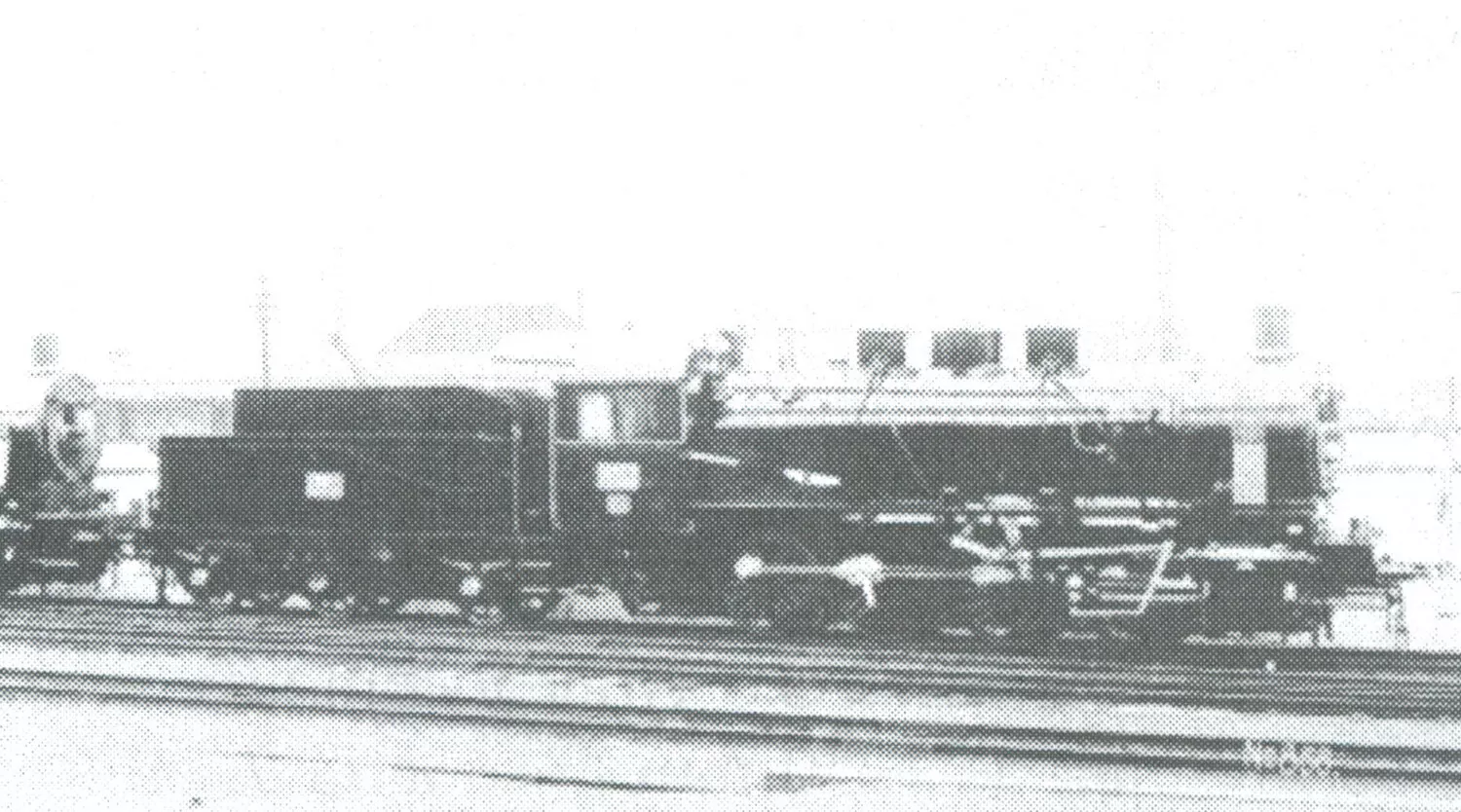

Series 1531 - 1536
Also known as:
Type D-h2
Vehicle type:
Registration country:
Railway companies:
In service:
1914 - 1938
Built by:
Length over buffers (mm):
18'340 mm
Wheelbase (mm | rigid / total):
4'700 mm
Tare weight (t):
58,0 t
Service weight (t):
64,5 t
Axle load (t):
16,20 t
Cylinders diameter (mm):
500 mm
Pistons stroke (mm):
630 mm
Grate area (m²):
2,630 m²
Heating surface total (m²):
196 m²
Steam pressure (Atm. / bar):
14 bar
Tractive effort (kN / lbf | starting / continuous):
96 kN
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'350 mm
Maximum speed (km/h):
50 km/h
Train heating (electric / steam):
no
1914
1914--01
