Source: trainsimsicilia.net
In service:
from 2010
Built by:

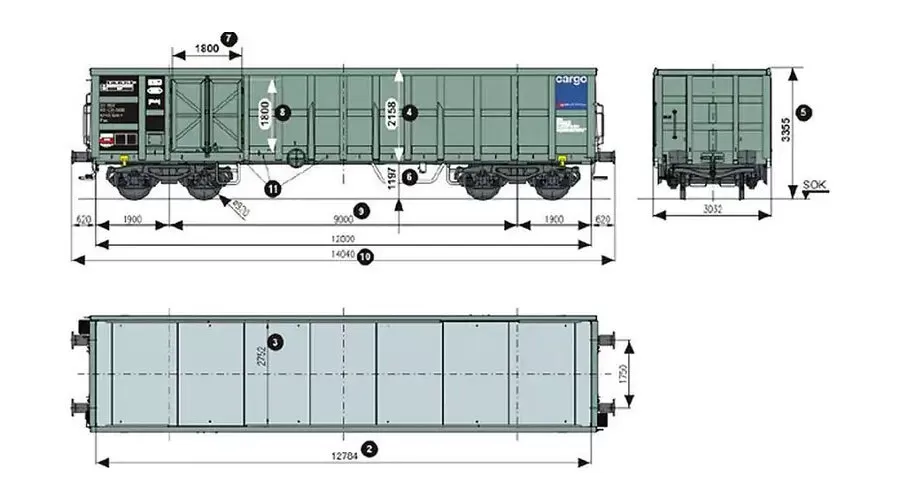

Length over buffers (mm):
14'040 mm
Wheelbase (distance between bogies centers) (mm):
9'000 mm
Minimum radius of curvature (m):
50 m
Tare weight (t):
27,5 t
Maximum load weight (t):
52,5 t
Maximum speed (km/h):
100 km/h
Maximum load length (mm):
12'784 mm
Maximum load width (mm):
2'752 mm
Maximum load surface (m²):
35,2 m²
Maximum load volume (m³):
74,5 m³
2010
2010--01
