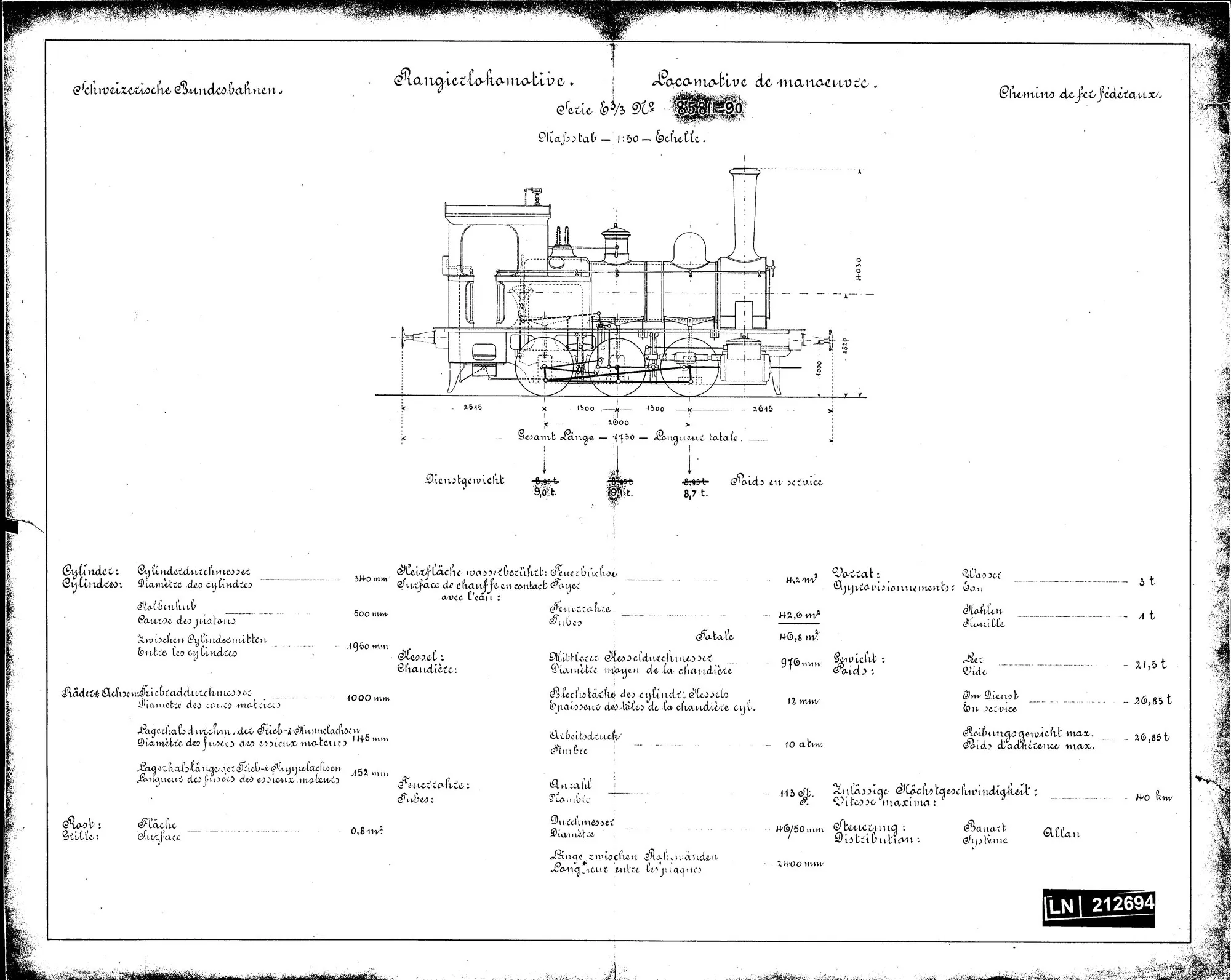

Source: commons.wikimedia.org
E 3/3 8581 - 8589
Also known as:
F3 81 - 90
Vehicle type:
Registration country:
In service:
1873 - 1917
Era:
I
Built by:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
C
Length over buffers (mm):
7'730 mm
Wheelbase (mm | rigid / total):
2'600 mm
Tare weight (t):
21,5 t
Service weight (t):
26,7 t
Cylinders:
2x
Cylinders diameter (mm):
340 mm
Pistons stroke (mm):
500 mm
Number of heating pipes:
113x
Heating pipe length (mm):
2'400 mm
Grate area (m²):
0,8 m²
Heating surface total (m²):
46,8 m²
Steam pressure (Atm. / bar):
10 bar
Water tank capacity (kg / l / m³):
3 m³
Coal capacity (kg / m³):
1'000 kg
Driving wheel diameter (x'xxx,xx | mm | new / worn):
1'000 mm
Maximum speed (km/h):
40 km/h
