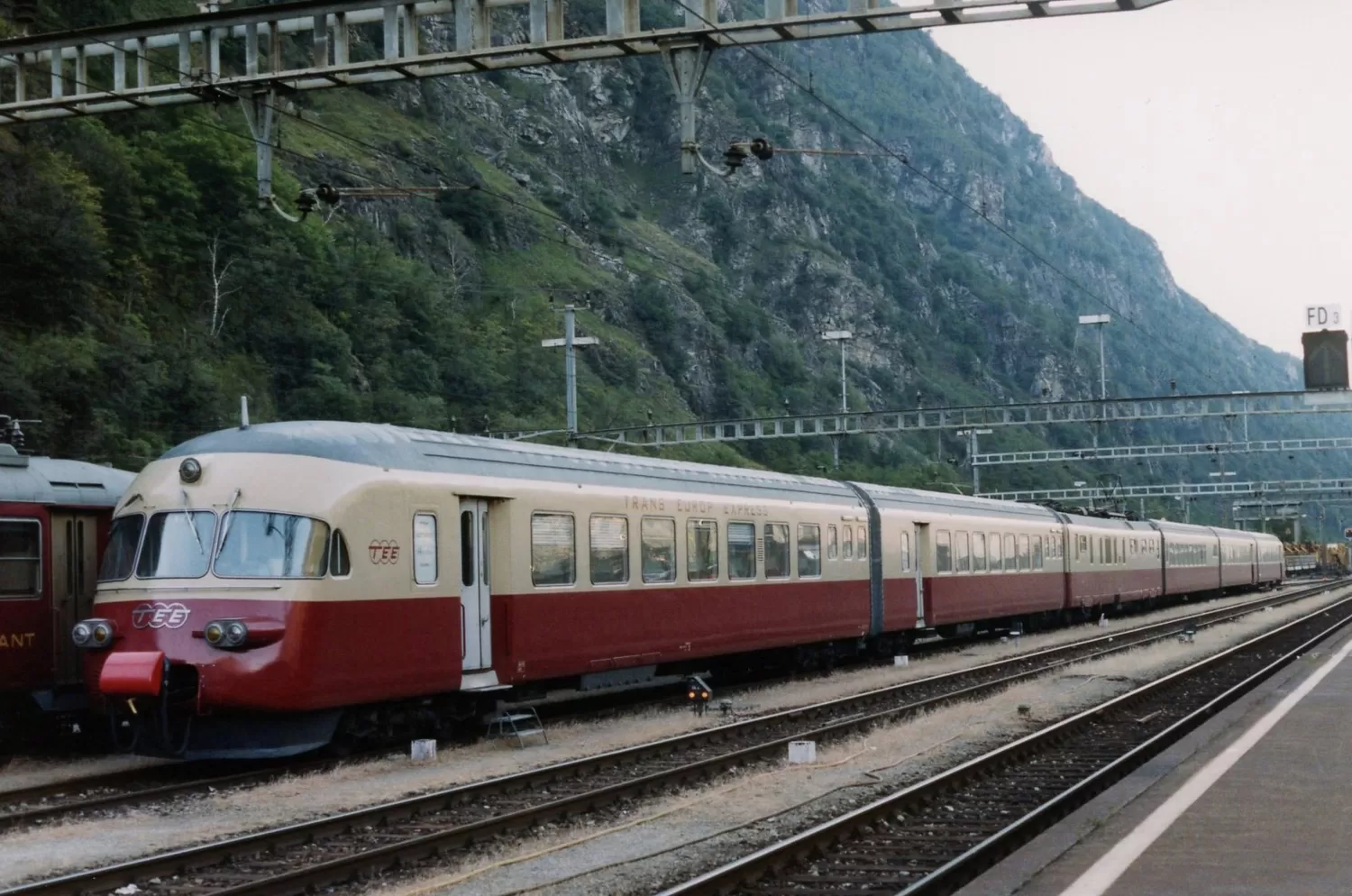

Source: flickr.com

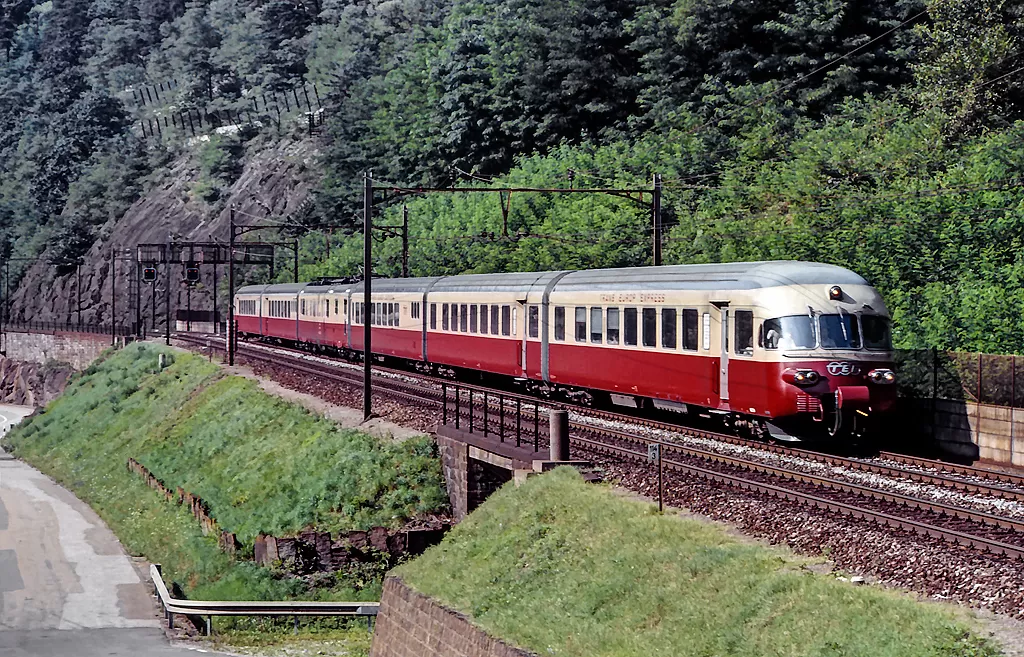

Source: maurizio messa
RAe TEEII 1051 - 1054 "Trans-Europe Express"
Also known as:
RABe EC
Vehicle type:
Registration country:
In service:
from 1961
Era:
III - VI
Built by:
Gauge:
Standard gauge (1'435 mm)
Electric systems:
1,5 kV DC
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
3 kV DC
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
3 kV DC
Current collectors:
Pantograph - Symmetrical
Length over buffers (mm):
125'334 mm*
*for the 5-car set
149'760 mm*
*for the 6-car set
*for the 5-car set
149'760 mm*
*for the 6-car set
Width (mm):
2'840 mm
Height (mm | over lowered pantograph):
4'210 mm
Tare weight (t):
259 t*
*for the 5-car set
309 t*
*for the 6-car set
*for the 5-car set
309 t*
*for the 6-car set
Number of traction motors:
4x
Power output (x'xxx kW / x'xxx hp):
2'310 kW
Tractive effort (kN / lbf | starting / continuous):
79,8 kN*
*for others
81,6 kN*
*for 15 kV
*for others
81,6 kN*
*for 15 kV
Powered wheels diameter (x'xxx,xx | mm | new / worn):
1'110 mm
Unpowered wheels diameter (x'xxx,xx | mm | new / worn):
940 mm
Maximum speed (km/h):
160 km/h
1961
1961--01
