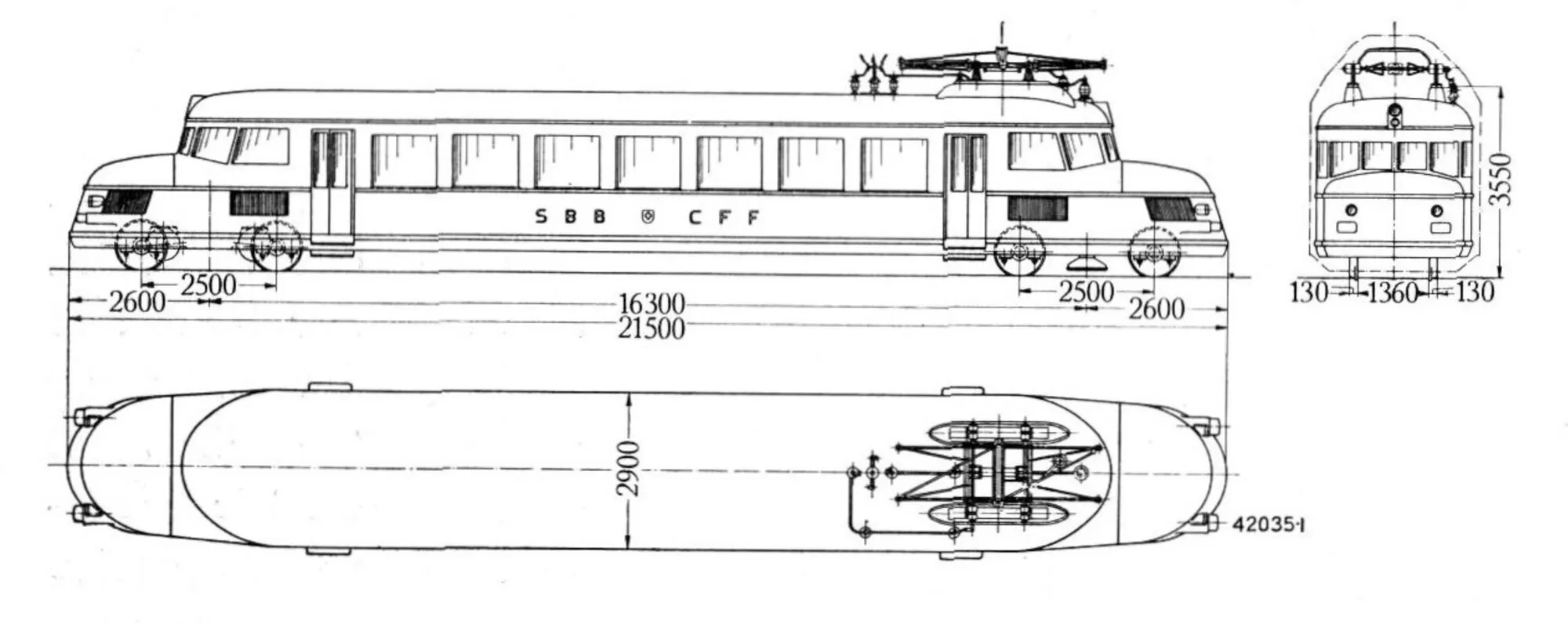

Source: The Brown Boveri Review (August 1935)
Source: marklinfan.com

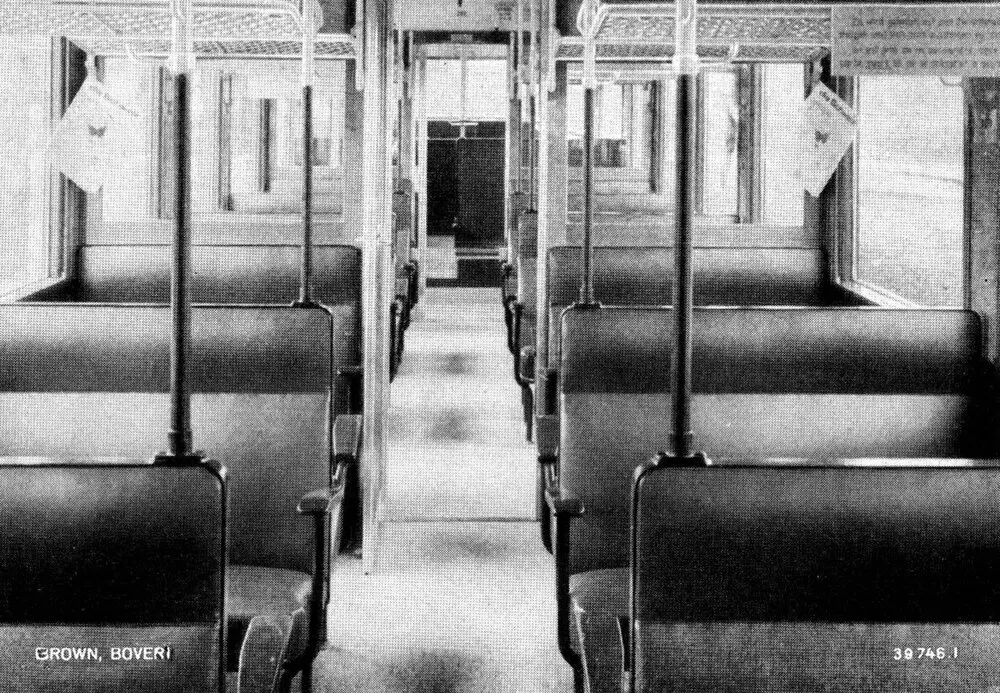

Source: The Brown Boveri Review (August 1935)
CLe 2/4
Also known as:
Re 2/4RCe 2/4Red arrow / Roter Pfeil / Flèche rouge / Freccia rossa
Vehicle type:
Registration country:
In service:
from 1935
Built by:
Gauge:
Standard gauge (1'435 mm)
Length over buffers (mm):
21'500 mm
Wheelbase (distance between bogies centers) (mm):
16'300 mm
Minimum radius of curvature on open stretches (m):
180 m
Minimum radius of curvature on switching sections (m):
114 m
Service weight (t):
32,6 t
Bogie wheelbase (mm):
2'500 mm
Wheel diameter (x'xxx,xx | mm | new / worn):
900 mm
Maximum speed (km/h):
125 km/h
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
70x single class seats
Capacity (seats / standees):
30 passengers
1928
1928--01
