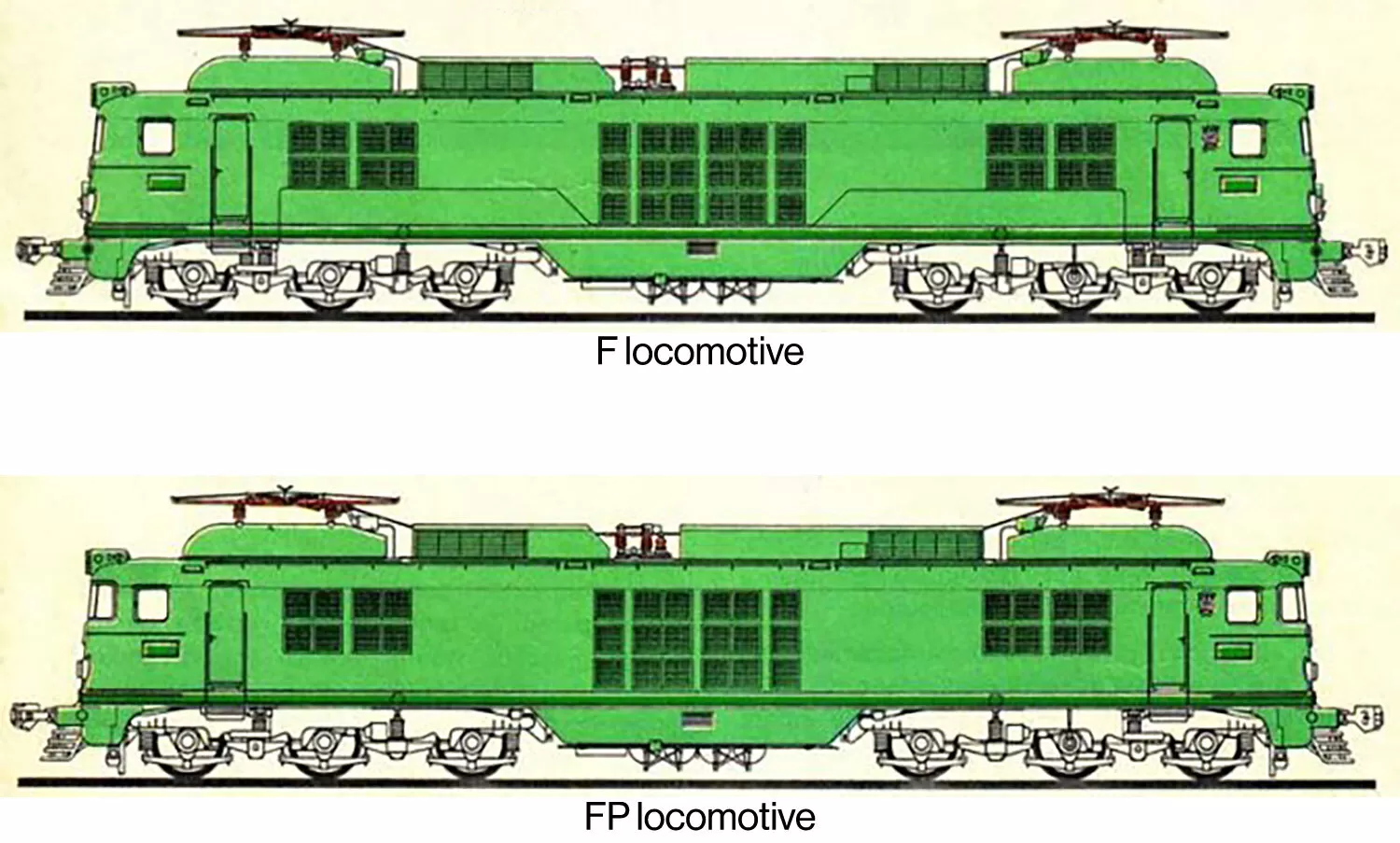

F
Vehicle type:
Registration country:
Railway companies:
Era:
III - IV
Built by:
- Alstom*
*electrical and mechanical parts - MTE - Electric Traction Equipment Company*
*electrical part - SFAC - Ironworks Company and Creusot Workshops*
*mechanical part
Gauge:
Wide track (1'524 mm)
Wheel arrangement:
Co'Co'
Electric systems:
25 kV AC / 50 Hz
Length over buffers (mm):
23'060 mm
Width (mm):
2'968 mm
Height (mm | over lowered pantograph):
4'920 mm*
*with lowered pantographs
*with lowered pantographs
Service weight (t):
138 t*
*F & FR locomotives
131 t*
*FP locomotives
*F & FR locomotives
131 t*
*FP locomotives
Axle load (t):
23 t*
*F & FR locomotives
21 t*
*FP locomotives
*F & FR locomotives
21 t*
*FP locomotives
Power output (x'xxx kW / x'xxx hp):
4'636 kW / 6'300 hp
Bogie wheelbase (mm):
4'670 mm*
*F & FR locomotives
4'845 mm*
*FP locomotives
*F & FR locomotives
4'845 mm*
*FP locomotives
Wheel diameter (x'xxx,xx | mm | new / worn):
new: 1'250 mm*
*F & FR locomotives
new: 1'220 mm*
*FP locomotives
*F & FR locomotives
new: 1'220 mm*
*FP locomotives
Maximum speed (km/h):
100 km/h*
*F & FR locomotives
160 km/h*
*FP locomotives
*F & FR locomotives
160 km/h*
*FP locomotives
1959
1959--01
