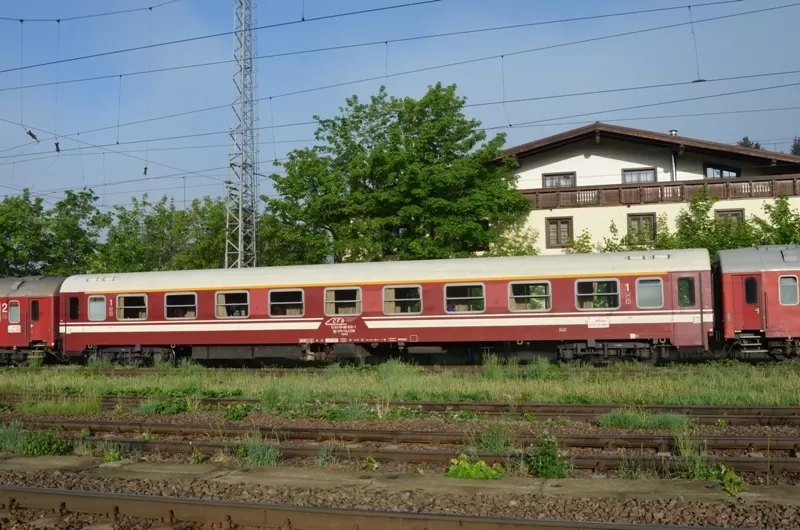

Amee 19-80
Also known as:
UIC-Z2
UIC / EVN numbering:
51 53 19-80Vehicle type:
Registration country:
In service:
from 1993
Built by:
Length over buffers (mm):
26'400 mm
Wheelbase (distance between bogies centers) (mm):
19'000 mm
Tare weight (t):
39 t
Bogies:
GP200s (Görlitz-Prag)
Wheel (steel tire wheel / monoblock wheel):
monoblock wheel
Maximum speed (km/h):
160 km/h
Braking system (vacuum brakes / air brakes / electropneumatic brakes / electronically controlled pneumatic brakes / electric brakes - tread (clasp) brakes / axle-mounted disk brakes / wheel-mounted disk brakes / dynamic brakes / regenerative brakes / rail brakes):
KE-GPR(D) pneumatic axle-mounted disk brakes
Access doors (electro-pneumatic - sliding doors / folding doors):
automatic sliding doors*
*closed automatically at a sped over 5 km/h and block automatically at a speed over 7 km/h
*closed automatically at a sped over 5 km/h and block automatically at a speed over 7 km/h
Compartments (compartments / attendant compartment):
9x compartments
Number of seats / compartment (1st class seats / 2nd class seats / 3rd class seats / folding seats):
6x 1st class seats
Total number of seats (1st class seats / 2nd class seats / 3rd class seats / folding seats):
54x 1st class seats
Toilets (direct discharge toilets / closed circuit toilets):
2x direct discharge toilets
Electric Train Supply (ETS) (yes / no - xxxxV AC / DC - xx,xx Hz):
1000 V AC / 17,5 Hz
1500 V AC / 50 Hz
1500 V DC
3000 V DC
1500 V AC / 50 Hz
1500 V DC
3000 V DC
Electric Train Heating (ETH) (yes / no - electric radiators / modulated air):
modulated air
Steam Train Heating (yes / no):
yes
Air conditioning (yes / no):
no
1993
1993--01
