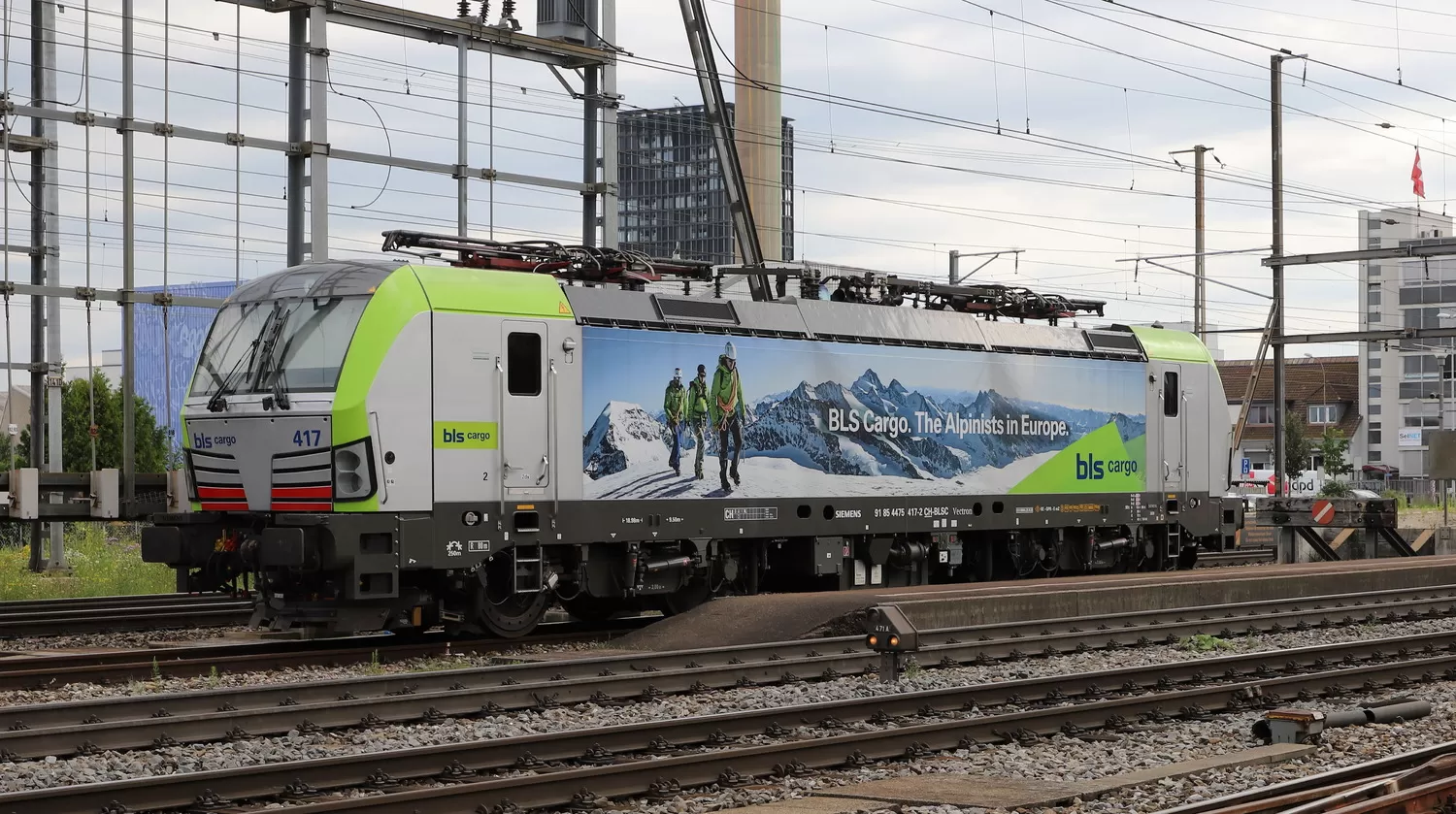

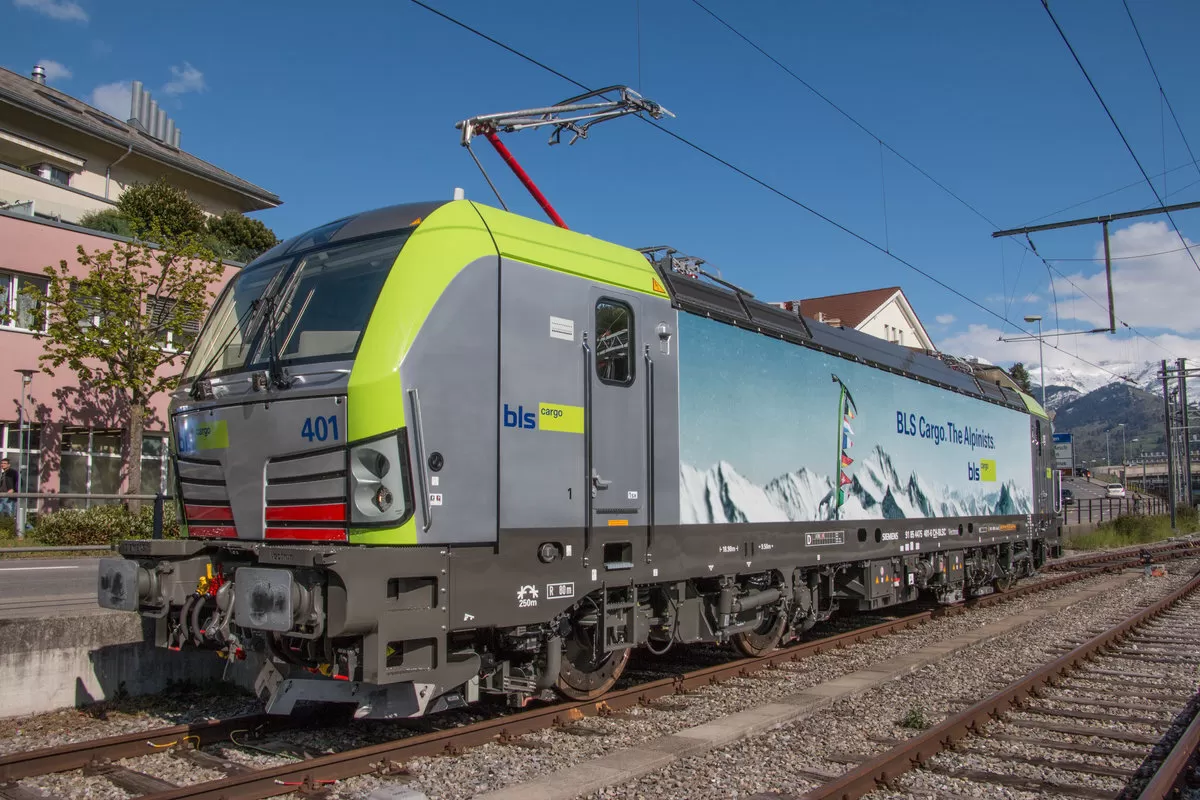

Re 475
Vehicle type:
Registration country:
Railway companies:
Gauge:
Standard gauge (1'435 mm)
Wheel arrangement:
Bo'Bo'
Electric systems:
3 kV DC
25 kV AC / 50 Hz
15 kV AC / 16,7 Hz
25 kV AC / 50 Hz
15 kV AC / 16,7 Hz
Current collectors:
Pantograph - Asymmetrical
Length over buffers (mm):
18980
Width (mm):
3012
Height (mm | over lowered pantograph):
4248
Tare weight (t):
90
Power output (x'xxx kW / x'xxx hp):
6400
Tractive effort (kN / lbf | starting / continuous):
300
Wheel diameter (x'xxx,xx | mm | new / worn):
1250
Maximum speed (km/h):
200
